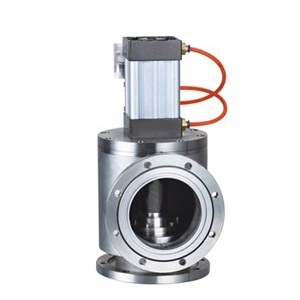

Model GDQ pneumatic high vacuum baffle valve

Model GDQ pneumatic high vacuum baffle valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

GDQ type pneumatic high vacuum flapper valve GDQ series pneumatic high vacuum flapper valve (with corrugated seal) is driven by compressed air, through the electromagnetic steering valve to change the direction of the air passage, drive the cylinder piston up and down, drive the valve stem up and down movement, so that the valve plate opens or closes, so as to achieve in the vacuum system on or off the air flow. The purpose of it. The GDQ-j type is the angle pass type, and the GDQ-s type is the three way with the pre draining.

Type GDQ series pneumatic high vacuum baffle valves are suitable for working air and non corrosive gases.

Main technical performance

適用范圍(Pa)
105~1.3x10-6
閥門漏率(Pa.L/S)
≤1.3x10-7
介質溫度(℃)
-30~+150(密封材料為氟橡膠)
氣源壓力(MPa)
0.4~0.8
法蘭標準
GB4982
安裝位置
DN<300任意,dn≥300垂直< div="">
電源電壓
標準出廠:AC220V/50Hz
特殊指定:AC110V;DC24V;DC12V等
信號反饋
標準出廠:不帶反饋信號
特殊指定:磁性開關DC/AC5~240V
Main shape connection dimensions
型號
通徑(DN)
ΦD
ΦB
H
A
法蘭標準
GDQ-J10(b)/KF
10
30
12.2
180
30
GB4982
GDQ-J16(b)/KF
16
30
17.2
180
40
GB4982
GDQ-J25(b)/KF
25
40
26.2
200
50
GB4982
GDQ-J40(b)/KF
40
55
41.2
210
65
GB4982
GDQ-J50(b)/KF
50
75
52.2
276
70
/
Connecting flange dimensions of looper flange
型號
通徑(DN)
ΦD
ΦB
H
A
n-ΦC
DNy(預抽口)
法蘭標準
GDQ-J50(b)
50
110
90
276
70
4-Φ9
/
GB/T6070
GDQ-J63(b)
63
130
110
283
88
4-Φ9
/
GB/T6070
GDQ-J80(b)
80
145
125
314
88
8-Φ9
/
GB/T6070
GDQ-J100(b)
100
165
145
338
108
8-Φ9
/
GB/T6070
GDQ-J125(b)
125
200
175
424
128
8-Φ11
/
GB/T6070
GDQ-J(S)150(b)
150
220
195
482
138
8-Φ11
DN40(GB4982)
JB919
GDQ-J(S)160(b)
160
225
200
482
138
8-Φ11
DN40(GB4982)
GB/T6070
GDQ-J(S)200(b)
200
285
260
620
200
12-Φ11
DN50(GB/T6070)
GB/T6070
GDQ-J(S)250(b)
250
335
310
655
208
12-Φ11
DN50(GB/T6070)
GB/T6070
GDQ-J(S)300(b)
300
380
350
783
250
8-Φ14
DN80(GB/T6070)
JB919
GDQ-J(S)320(b)
320
425
395
789
250
12-Φ14
DN80(GB/T6070)
GB/T6070
GDQ-J(S)400(b)
400
510
480
1210
330
16-Φ14
DN100(GB/T6070)
GB/T6070
①GDQ-J(S)400(b)
400
500
465
1210
330
16-Φ14
DN100(GB/T6070)
JB919
GDQ-J(S)500(b)
500
610
580
1280
360
16-Φ14
DN125(GB/T6070)
GB/T6070
GDQ-J(S)600(b)
600
710
670
1512
450
12-Φ21
DN160(GB/T6070)
JB919
GDQ-J(S)630(b)
630
750
720
1512
450
20-Φ14
DN160(GB/T6070)
GB/T6070
GDQ-J(S)800(b)
800
920
890
1900
520
24-Φ14
DN200(GB/T6070)
GB/T6070
