SQ48X-1 three way switch valve (lower switch)

SQ48X-1 three way switch valve (lower switch)
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

SQ48X-1 three-way switching valve (also known as bottom switching), by the four-way body, valve seat, valve plug, stem, sealing ring and other parts. The valve stem and valve plug move up and down to realize valve opening and closing. The upper and lower valve seats are equipped with a silicon rubber sealing ring to seal up and down two links respectively.

SQ48X-1 three-way switching valve can be driven by cylinder, cylinder, electric push rod and other different operation modes, the valve rod only do linear movement, its stroke and thrust note, drive device user-owned, can also request special order processing.

Main performance parameters

Adopt pneumatic drive device: air source pressure 0.35-0.6Mpa

Adopt oil cylinder driving device: hydraulic 0.8Mpa

Nominal pressure: 0.25Mpa

Medium pressure: 0.05Mpa

Applicable temperature: less than 180 degrees centigrade

Sealing material: silicone rubber

Opening and closing time: 2-6S

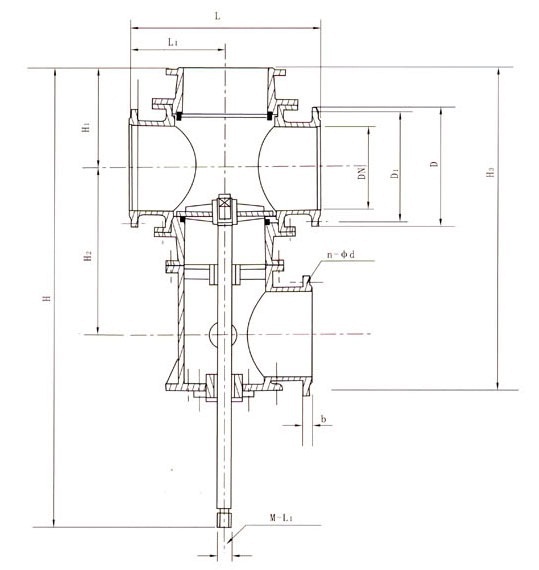

主要外形連接尺寸


DN
D
D1
N-φd
b1
L
L1
H1
H2
H3
H
M-L1
推力(N)
350
490
445
12-φ22
20
800
400
410
600
350
1910
M36×2-40
350
400
540
495
16-φ22
20
860
430
450
650
380
2060
M36×2-40
380
500
645
600
20-φ22
20
920
460
550
875
430
2475
M40×2-50
430
600
755
705
20-φ26
22
1000
500
600
975
500
2700
M44×2-60
500
700
860
810
24-φ26
22
1200
600
650
1075
550
3075
M48×2-80
550
800
975
920
24-φ30
22
1400
700
700
1175
600
3375
M56×2-80
600
900
1075
1020
24-φ30
22
1400
700
750
1280
650
3580
M60×2-100
650
1000
1175
1120
28-φ30
24
1500
750
800
1400
700
3850
M60×2-100
700
